Fibrillated Twisted or Non twist Standard/Commen/FR polypropylene fillers for cable and wire
1. The relative density is small, and it is only one of the lightest varieties in plastics.
2. Good mechanical properties. Except for impact resistance, other mechanical properties are better than polyethylene, and the molding processability is better.
3. With high heat resistance, the continuous use temperature can reach 110-120℃.
4. Good chemical performance, almost no water absorption, and no reaction with most chemicals.
5. The texture is pure and non-toxic.
6. Good electrical insulation.
7. The transparency of polypropylene products is better than that of high-density polyethylene products
The advantage of PP cable filler yarn is as below:
- Excellent flexibility,ensure the cable stablility and keep the cable round
- Non-absorbent material keep the high tensile strength
- Acid and alkali resistance.
- high insulation performance
- High voltage resistance
- environment friendly
Specification Data Sheet for reference
| Linear Density | 12KD | 18KD | 30KD | 60KD | 90KD | 120KD | 195KD | 630KD | 880KD | 1130KD | 1630KD |
|
(weight) g/m(±10%) | 1.33 | 2 | 3.67 | 6.67 | 10 | 13.3 | 21.67 | 70 | 98 | 112 | 182 |
|
Diameter
(mm) | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 12 | 14 | 16 | 20 |
Different Types Data Sheet
| Item | Unit | Commen Filler | Standard Filler | High Strength Filler/ LSZH FR Filler/ Submarine Filler |
| Breaking Strength | g/d | 0.2-0.6 | 0.6-1.4 | 1.4-3 |
| Breaking Elongation | % | ＜20 | ＜20 | ＜15 |
| Hot Shrinkage Rate | % | ≤6 | ≤4.5 | ≤3 |
| Weight per tube | KG | 6-40 | 2.5-40 | 2.5-40 |
| Oxygen Index | | | | FR ≥28% |
| Advantage | | Cheap price,suitable for large cable | Cheap price,suitable for large cable | Virgin PP material,best material property,suitable for optical cable,power able,submarine cable |
Package Tube sizes for choose or customzied
| Iner core(mm) | 28 | 38 | 38 | 54 | 76 | 76 | 90 |
| Core Length(mm) | 260 | 230 | 258 | 258 | 310 | 432 | 260 |

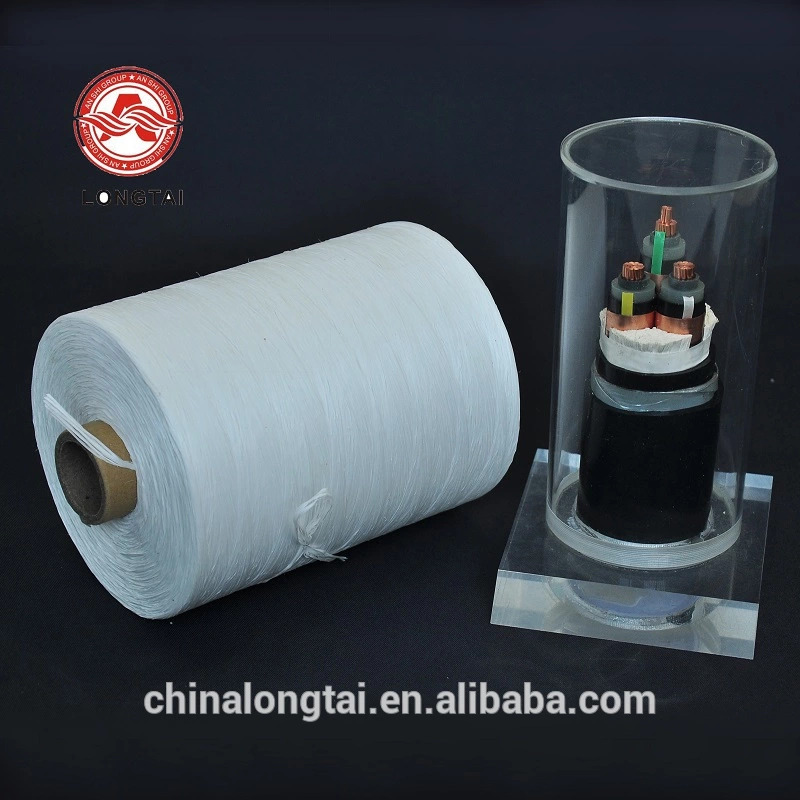

Package pictures for reference
Product Detailes

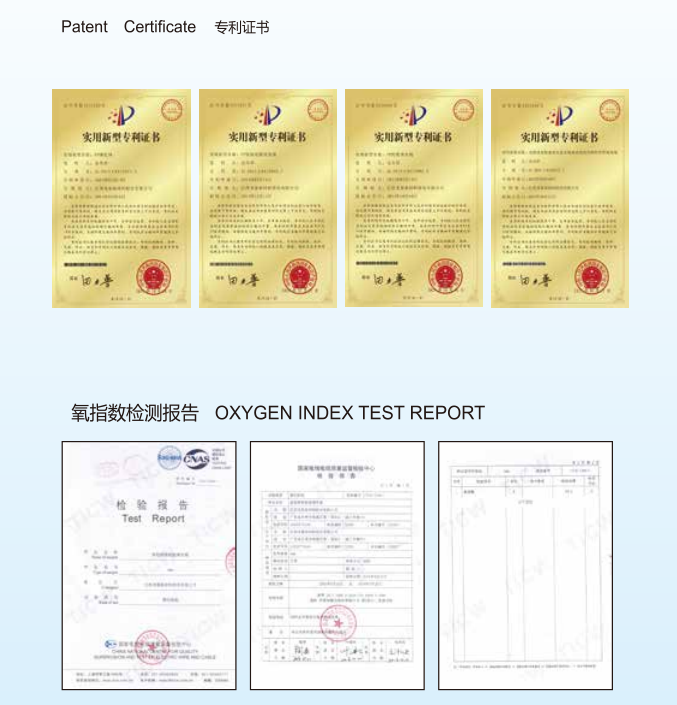

Certifications
What we cooperated
Remarks:
1> MOQ 1000KG
2> Loading Capacity with pallet shipment: Appox 8000KG/20GP
3> Payment term: T/T,30% in advance,70% before shipment
4> Production time: about 25 workdays after receive deposit
After Service:
1. Best quality and best service for any order. No problem big or small order
2. One year warranty.
3. Please contact after our Service Department, inform us what problem you encounter.
4. We provide solving methods for you.
